Standard series - BRAVIAS ENERGY

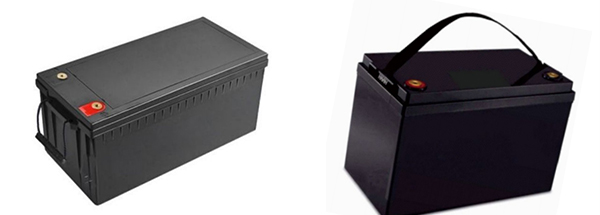

The standard series, the voltage 2V, 4V, 6V and 12V, the capacity from 0.8Ah to 3000Ah, includes the small batteries, big batteries and 2V batteries which are lead acid batteries.

Applications:

• Uninterruptable Power Supply (UPS) • Communication power supply

• Solar power system • DC power supply

• Alarm and security system • Electronic apparatus and equipment

• Emergency backup power supply • Monitor Equipment

• Auto control system • Electric Power System (EPS)

• Emergency light • Cable television system

• Traffic Equipment • Medical Equipment

4V/6V/12V Small batteries

Model	Voltage	Capacity	Weight (±5%)	Dimensions (±2mm)				Terminal
Model	V	AH	kg	Length	Width	Height	Total Height	Terminal
LFP4-4	4	4	0.45	48	48	100	106	T1
LFP4-4.5	4	4.5	0.47	48	48	100	106	T1
LFP6-1.3	6	1.3	0.29	97	24	52	58	T1
LFP6-2.8	6	2.8	0.45	66	33	100	106	T1
LFP6-3	6	3	0.63	134	34	60	66	T1
LFP6-3.2	6	3.2	0.68	134	34	60	66	T1
LFP6-3.5	6	3.5	0.65	70	47	100	106	T1
LFP6-4	6	4	0.68	70	47	100	106	T1
LFP6-4.5	6	4.5	0.73	70	47	100	106	T1
LFP6-5K	6	5	0.75	70	47	100	106	T1
LFP6-5.5	6	5.5	0.81	70	47	100	106	T1
LFP6-7	6	7	1.10	151	34	94	100	T1
LFP6-7.2	6	7.2	1.18	151	34	94	100	T1
LFP6-10	6	10	1.60	151	50	94	100	T1
LFP6-12	6	12	1.72	151	50	94	100	T1/T2
LFP12-0.8	12	0.8	0.33	96	25	62	62	PLUG
LFP12-1.2	12	1.2	0.51	97	43	52	58	T1
LFP12-1.3	12	1.3	0.56	97	43	52	58	T1
LFP12-2	12	2	0.84	178	35	61	67	T1
LFP12-2.3	12	2.3	0.9	178	35	61	67	T1
LFP12-2.6	12	2.6	0.75	70	48	100	106	T1
LFP12-3.2	12	3.2	1.30	134	67	61	67	T1
LFP12-4	12	4	1.33	90	70	101	107	T1
LFP12-4.5	12	4.5	1.45	90	70	101	107	T1/T2
LFP12-5	12	5	1.51	90	70	101	107	T1/T2
LFP12-6	12	6	1.90	151	65	95	101	T1/T2
LFP12-6.5	12	6.5	1.98	151	65	95	101	T1/T2
LFP12-7	12	7	2.05	151	65	95	101	T1/T2
LFP12-7.5	12	7.5	2.22	151	65	95	101	T2
LFP12-8	12	8	2.30	151	65	95	101	T2
LFP12-9	12	9	2.48	151	65	95	101	T2
LFP12-10	12	10	3.05	151	98	95	101	T2
LFP12-12	12	12	3.25	151	98	95	101	T2
LFP12-15	12	15	4.50	181	77	167	167	T3/M5
LFP12-17	12	17	5.05	181	77	167	167	T3/M5
LFP12-18	12	18	5.25	181	77	167	167	T3/M5
LFP12-20	12	20	5.35	181	77	167	167	T3/M5
LFP12-24	12	24	7.40	166	175	125	125	M5
LFP12-24A	12	24	7.60	166	125	175	175	M5
LFP12-26	12	26	7.70	166	175	125	125	M5
LFP12-28	12	28	8.20	166	175	125	125	M5
LFP12-28A	12	28	8.50	166	175	125	125	M5

6V/12V big batteries

Model	Voltage	Capacity	Weight (±5%)	Dimensions（±2mm）				Terminal
Model	V	AH	kg	Length	Width	Height	Total Height	Terminal
LFP6-200	6	200	29.0	323	178	224	224	M8
LFP12-33	12	33	10.3	195	130	159	180	M6
LFP12-38	12	38	11.2	197	165	170	170	M6
LFP12-40	12	40	12.0	197	165	170	170	M6
LFP12-45	12	45	13.2	197	165	170	170	M6
LFP12-50	12	50	14.0	197	165	170	170	M6
LFP12-55	12	55	16.1	230	138	211	215	M6
LFP12-65	12	65	20.3	350	167	179	183	M6
LFP12-70	12	70	21.5	259	169	208	227	M6
LFP12-75	12	75	22.5	259	169	208	227	M6
LFP12-85	12	85	23.2	259	169	208	227	M6
LFP12-90	12	90	26.5	306	168	207	212	M8
LFP12-100	12	100	28.3	330	171	214	220	M8
LFP12-120	12	120	32.8	405	173	227	236	M8
LFP12-150	12	150	40.0	483	170	240	240	M8
LFP12-180	12	180	54.0	522	238	218	222	M8
LFP12-200	12	200	58.5	522	238	218	222	M8
LFP12-230	12	230	61.8	522	238	218	222	M8
LFP12-250	12	250	67.0	522	269	220	223	M8

2V batteries

Model	Voltage	Capacity	Weight (±5%)	Dimensions（±2mm）				Terminal
Model	V	AH	kg	Length	Width	Height	Total Height	Terminal
LFP2-100	2	100	5.0	171	72	206	209	M8
LFP2-150	2	150	8.0	171	102	206	221	M8
LFP2-200	2	200	12.4	173	109	330	365	M8
LFP2-300	2	300	17.5	171	151	330	365	M8
LFP2-400	2	400	23.0	210	171	330	365	M8
LFP2-500	2	500	27.5	241	171	330	365	M8
LFP2-600	2	600	33.0	302	175	330	365	M8
LFP2-800	2	800	46.5	410	175	330	365	M8
LFP2-1000	2	1000	57.5	475	175	330	365	M8
LFP2-1500	2	1500	88.0	400	350	345	382	M8
LFP2-2000	2	2000	117	490	350	345	382	M8
LFP2-3000	2	3000	180	710	350	345	382	M8

We are updating the datasheet now. Pls contact for details.
